TG260

The machine features seven servo motors and RTCP true five-axis linkage. It's fully symmetrical, center-of-gravity driven, and features a gantry-type cradle for the five-axis machine, offering superior spindle rigidity compared to side-mounted spindle boxes. The Z-axis boasts three guideways for maximum rigidity. The A-axis boasts symmetrical dual motors and a 3DD direct-drive cradle, ensuring zero drift on all five axes, high torque, and a long lifespan.

X/Y/Z Axis Travel (mm)

280/580/300

A-axis Travel (°)

-140-+140

C-axis Travel (°)

N*360

Machine Weight (kg)

5000

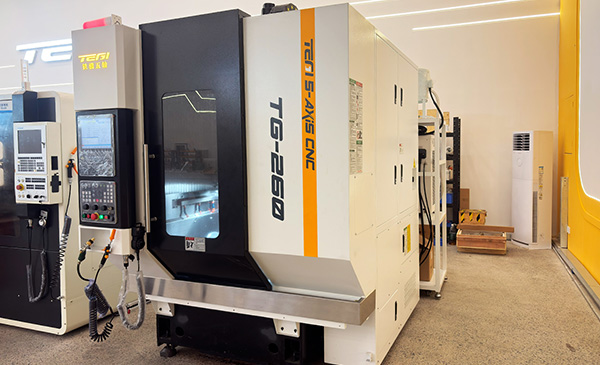

Product Actual Photos

Product, appearance, workbench display

Product Parameters

Project		Specification	Unit
Processing range	Workbench diameter	∅260	mm
	The maximum rotational diameter of the workpiece	∅520	mm
	The countertop is lower than the A-axis	35	mm
	The maximum height of the workpiece (including fixtures)	350	mm
	The maximum weight of the workpiece and fixture	150	kg
Feed shaft	X/Y/Z axis travel	280/580/300	mm
	A-axis stroke	-280	°
	C-axis travel	N*360	°
	The distance from the end face of the spindle to the worktable	150-420	mm
	Maximum speed along the X/Y/Z axis	48	m/min
	Rated speed of A/C axis	30/50	rpm
	Maximum torque of the A/C axis	415/180	Nm
Main shaft	Spindle tool holder interface	HSK-A50
	Maximum rotational speed of the main shaft	20000	rpm
	The spindle torque is S1/S6-25%	28/34	Nm
Tool magazine	Tool magazine capacity	24	T
	Maximum tool diameter/length	40/280	mm
	Maximum tool weight	2.5	kg
	Tool change time	6	s
Precision	Closed-loop control of X/Y/Z axes	Optional
	A/C closed-loop control	Standard
	The positioning accuracy of the X/Y/Z axes is ISO 10791-4:1998	0.005	mm
	The positioning accuracy of the A/C axis is ISO 10791-4:1998	5	Arc seconds
	Repeat positioning accuracy of X/Y/Z axes ISO 10791-4:1998	0.003	mm
	Repeat positioning accuracy of A/C axis ISO 10791-4:1998	3	Arc seconds
The external dimensions of the main machine part (length/width/height) (front machine tool)		1,800/2,300/2,300	mm
Machine tool weight (excluding accessories)		5000	kg
Total electrical capacity		30	KVA

*In order to optimize machine tool performance, our company may modify the project parameters in the table without prior notice; product parameters may also be adjusted in actual use due to selection, working conditions or technical improvements, so the actual product shall prevail.
