TG1200

The machine features nine servo motors and RTCP true five-axis linkage. Its fully symmetrical, center-of-gravity driven, box-in-box design and overhead gantry-type cradle structure offer superior spindle rigidity compared to side-mounted spindle boxes. The Z-axis features four guideways and a square ram for maximum rigidity. The A-axis boasts symmetrical dual motors and a 3DD direct-drive cradle, ensuring zero drift on all five axes, high torque, and a long lifespan.

X/Y/Z Axis Travel (mm)

1200/1450/1000

A-axis Travel (°)

-140-+140

C-axis Travel (°)

N*360

Machine Weight (kg)

35000

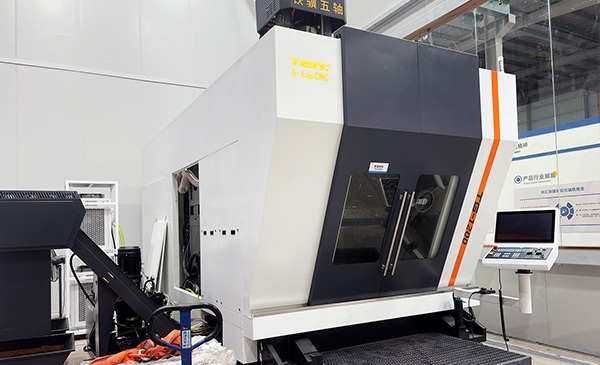

Product Actual Photos

Product, appearance, workbench display

Product Parameters

Project		Specification	Unit
Processing range	Workbench diameter	∅1,200	mm
	The maximum rotational diameter of the workpiece	∅1,400	mm
	The countertop is lower than the A-axis	100	mm
	The maximum height of the workpiece (including fixtures)	1100	mm
	The maximum weight of the workpiece and fixture	3000	kg
Feed shaft	X/Y/Z axis travel	1,200/1,450/1,000	mm
	A-axis stroke	-280	°
	C-axis travel	N*360	°
	The distance from the end face of the spindle to the worktable	180-1,180	mm
	Maximum speed along the X/Y/Z axis	72	m/min
	Rated speed of A/C axis	30/50	rpm
	Maximum torque of the A/C axis	32,000/8,000	Nm
Main shaft	Spindle tool holder interface	HSK-A100
	Maximum rotational speed of the main shaft	12000	rpm
	The spindle torque is S1/S6-25%	300/510	Nm
Tool magazine	Tool magazine capacity	36[72]	T
	Maximum tool diameter/length	125/425	mm
	Maximum tool weight	30	kg
	Tool change time	10	s
Precision	Closed-loop control of X/Y/Z axes	Standard
	A/C closed-loop control	Standard
	The positioning accuracy of the X/Y/Z axes is ISO 10791-4:1998	0.005	mm
	The positioning accuracy of the A/C axis is ISO 10791-4:1998	5	Arc seconds
	Repeat positioning accuracy of X/Y/Z axes ISO 10791-4:1998	0.003	mm
	Repeat positioning accuracy of A/C axis ISO 10791-4:1998	3	Arc seconds
The external dimensions of the main machine part (length/width/height) (front machine tool)		3,300/5,600/3,800	mm
Machine tool weight (excluding accessories)		35000	kg
Total electrical capacity		120	KVA

*In order to optimize machine tool performance, our company may modify the project parameters in the table without prior notice; product parameters may also be adjusted in actual use due to selection, working conditions or technical improvements. The actual product shall prevail. The final right of interpretation belongs to our company.
