650mm
800mm
1000kg

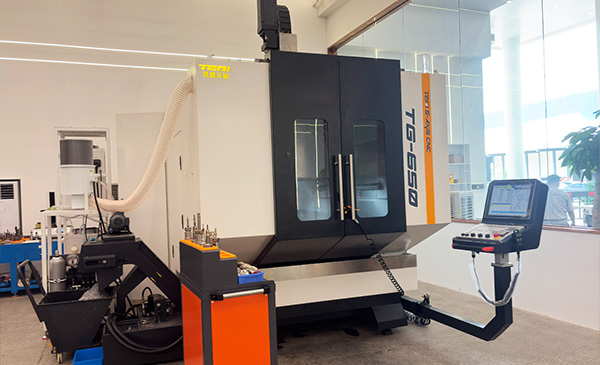

Product, appearance, workbench display
| I T E M | TG650 | UNIT | |
Working range | Clamping surface | ∅650 | mm |
| C-axis rotary-diameter at A-axis center | ∅800 | mm | |
| Distance A-axis-center to rotary-table | 100 | mm | |
| A-axis swivel diameter(swing)at X-axis center | 600 | mm | |
| Table Load max. | 1000 | kg | |
Feed-drive system | X/Y/Zaxis traverse path | 650/850/550 | mm |
| Swivel range of A-axis | ±140 | o | |
| Swivel range ofC-axis | N*360 | o | |
| Distance spindle-table min./max. | 150-700 | mm | |
| A/Caxis rate speed | 30/60 | rpm | |
| A/Caxis max.torque | 4000/8000 | Nm | |
| A/Caxis rate speed | 50/100 | rpm | |
| A/Caxis max.torque | 1350/2700 | Nm | |
Motor-spindle drive | 口Cutting-toolinterface | HSK-A63 | |
| Motor-spindle max.speed | 16000 | rpm | |
| S1/S6-25%Motor-spindle torque S1/S6-25% | 100/120 | Nm | |
Tool magazine | Toolpositions | 36 | T |
| Max.tooldiameter/length | ∅75/400 | mm | |
| Max.tool diameter/length | ∅125/400 | mm | |
| Max.toolweight | 8 | kg | |
Accuracy | X/Y/Zaxis positioning accuracy ISO 10791-4:1998 | 0.006 | mm |
| A/Caxis positioning accuracy ISO 10791-4:1998 | 7 | ARCSEC | |
| X/Y/Zaxis repeat positioning accuracy ISO 10791-4:1998 | 0.004 | mm | |
| A/Caxis repeat positioning accuracy ISO 10791-4:1998 | 4 | ARCSEC | |
| Dimensionslength/width /height(front) | 2405/4050/3790 | mm | |
| Machine weight(Not include accessories) | 11100 | kg | |
| Power consumption | 70 | KVA | |
* Parameter updated in May 2026 version
